Drawing regions of interest and segments§

You can use the built-in OHIF Viewer to create and modify regions of interest and segments for your images and store them in XNAT. ˜

ROI contours are regions you create by drawing one or more contours around the region boundaries using the ROI Draw and ROI Sculpt tools
Segments are label maps which you define using the Brush tool to select voxels to form part of the segment

Please refer to the XNAT OHIF Viewer documentation for more information.

Launching the OHIF Viewer§

You can launch the OHIF Viewer from any subject or session in XNAT by choosing View Subject or View Session from the Actions menu. If the OHIF Viewer is already running, you can navigate to a different subject or session using the XNAT Nav menu on the left.

See Visualising data for more details on launching and using the OHIF Viewer.

Contours§

A region of interest (ROI) is created by drawing contours on one or more 2D image slices. An ROI contour collection contains all the contours which describe a single region of interest. For a 3D image, this will generally include contours on multiple slices which combine to define a 3D region of interest.

Select the Contours button on the right of the OHIF Viewer to show the ROI Contour Collections panel

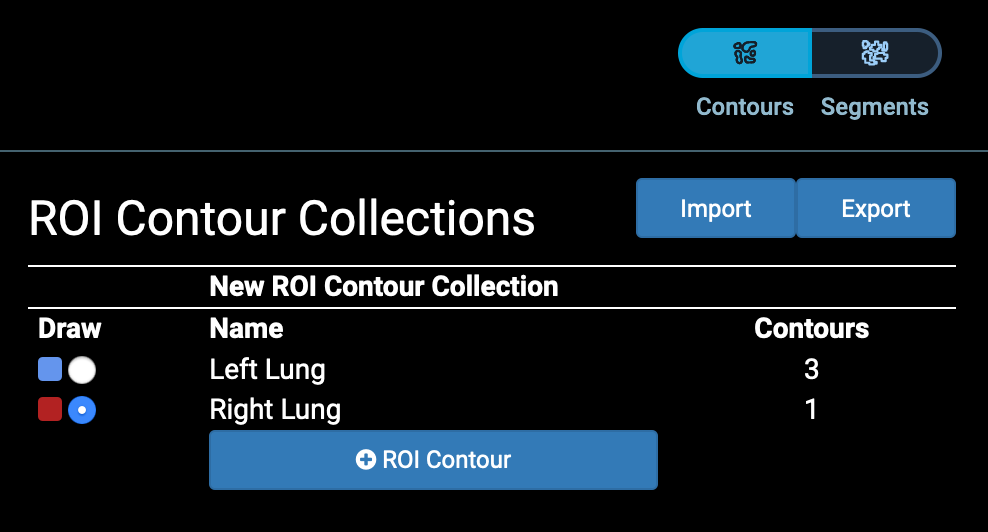

ROI Contour Collections

Create a new Region of Interest§

Select the Contours button on the right of the OHIF Viewer to show the ROI Contour Collections panel
Click + ROI Contour to create a new Region of Interest
Enter a name for this new Region of Interest (e.g. 'Right lung')
Navigate to the first image slice where you want to start drawing the ROI boundary.
Select the ROI > Draw tool

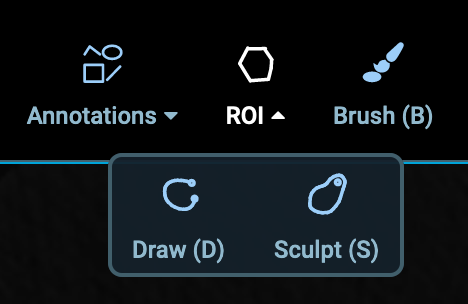

Draw and Sculpt tools

Define your first ROI boundary contour as follows:
Click a point on the boundary to start drawing a boundary contour
Then you can either draw the boundary contour freehand by holding down the mouse button and dragging, or you can click on boundary points to draw straight lines from the last point.
Click back on the starting point to complete the contour.

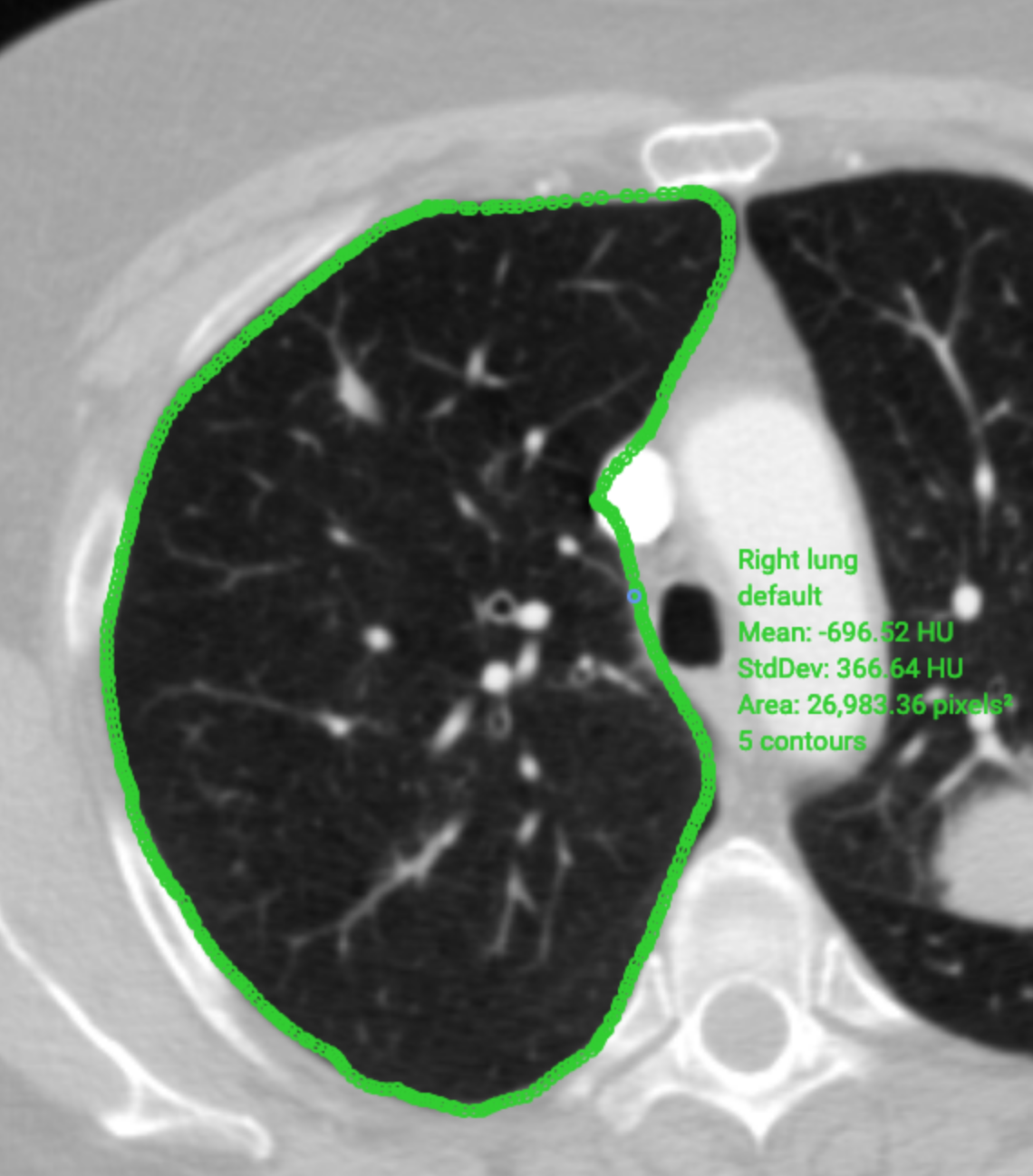

Drawing a contour

Repeat if you need to add more contours on the same image slice.
Navigate to the next image slice and add more contours as required. Note: you can use Interpolation (see below) to speed up the process when defining a 3D region of interest

Use the Sculpt tool to refine a Region of Interest§

You can use the Sculpt tool to refine a contour.

Select ROI > Sculpt

Draw and Sculpt tools

The sculpt tool is shown as a circle which changes size automatically as you move it around the image
Click inside the contour to add all points in the circle to the region. This works by shifting the contour away from the circle
Click outside the contour to remove all points in the circle from the region. This works by shifting the contour away from the circle

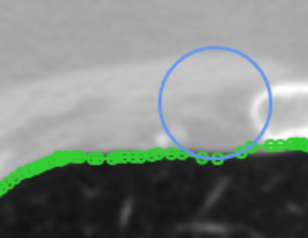

Sculpt tool

Interpolation§

Drawing 2D contours over many image slices can be time consuming. To speed up the process you can enable Interpolation under Settings at the bottom of the ROI Contour Collections panel.

When interpolation is enabled, you need only define contours every few slices. Additional contours will be added in between the slices you have defined using interpolation. When using interpolation you should visually check and correct the resulting contours to ensure accuracy. Interpolation is a simple geometric process and will be less accurate than a human operator.

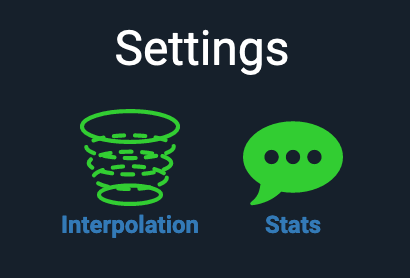

ROI settings

ROI Statistics§

Enable Stats under Settings at the bottom of the ROI Contour Collections panel to show statistics for the voxels within the region you have defined.

Modifying a Region of Interest§

Select the Contours button on the right of the OHIF Viewer to show the ROI Contour Collections panel
Under Draw, check the Region of Interest you wish to modify
Use the ROI > Draw and ROI > Sculpt tools described above to add or modify contours

Saving Regions of Interest§

You must save your ROI Contour Collections to preserve them before you exit the OHIF Viewer.

In the ROI Contour Collections panel, click the Export button to save your ROI contour collections to XNAT.
Enter a name under which the Regions of Interest will be stored
The Regions of Interest will be saved as an ROI Collection Assessment under the corresponding image session.

Loading Regions of Interest§

When restarting the OHIF Viewer you will need to reload the Regions of Interest

In the ROI Contour Collections panel, click the Import button to load previously saved Regions of Interest from XNAT.
Select the Regions of Interest to reload from the drop-down menu and click the XNAT icon

Segments§

A segment is created by using the Brush tool to select voxels on one or more 2D image slices to include within the segment

Select the Segments button on the right of the OHIF Viewer to show the Segments panel

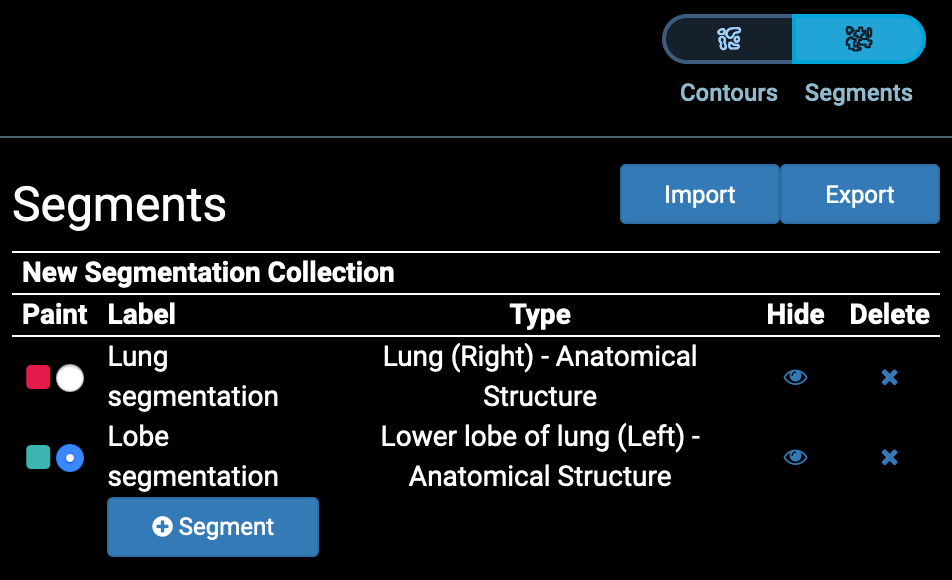

Segments

Create a new Segment§

Select the Segments button on the right of the OHIF Viewer to show the Segments panel
Click + Segment to create a new Segment
Enter a name for this new Segment and select appropriate labels for the feature you are defining.
Navigate to the first image slice where you want to start drawing the ROI boundary.
Select the Brush tool
Draw the mouse to add voxels to the Segment
Hold down control when dragging to remove voxels
Repeat if you need to add more voxels on the same image slice.
Navigate to the next image slice and add more voxels as required.

Modifying a Segment§

Select the Segments button on the right of the OHIF Viewer to show the Segments panel
Under Paint, check the Segment you wish to modify
Click on the segment name if you wish to rename the segment or change its type
Use the Brush tool to modify the segment as described above
You can also delete segments or hide them from view

Saving Segments§

You must save your Segments to preserve them before you exit the OHIF Viewer.

In the Segments panel, click the Export button to save your segments to XNAT.
Enter a name under which the segments will be stored
The segments will be saved as an ROI Collection Assessment under the corresponding image session.

Loading Segments§

When restarting the OHIF Viewer you will need to reload segments

In the Segments panel, click the Import button to load previously saved Segments from XNAT.
Select the segment to reload from the drop-down menu and click the XNAT icon
