Logging in to the UCL XNAT servers

1. Request an account

If you don't yet have an account on the server you want to access, you need to request access before you can log in. An account on one server does not given you access to the other servers.

• If you want to join an existing XNAT project, contact the project administrator.
• If you want to set up your own XNAT project, contact the MIRSG ream

---

2 Connect to a VPN if you can't access the server directly

If you are accessing the internal or collaborators server from outside of UCL, you may need to use a VPN that gives you access to the UCL Network. You do not need a VPN to access the public server. VPNs are slower than a direct connection, so don't use one unless you need to.

There are several VPNs, including:

• UCL VPN (requires a UCL account and uses your UCL SSO credentials)
• UCL Computer Science VPN (requires a CS Windows account and uses your CS Windows credentials)
• UCL DRC VPN (requires a DRC account)

We recommend using the Computer Science VPN if you have a CS account.

---

3. Connect to the XNAT server that hosts your project

• If you received an invitation email, click on the link in the email.

• Otherwise choose the server you wish to connect to. Projects are normally located on one of the following servers:

• https://ucl-open-xnat.cs.ucl.ac.uk hosts projects that can be accessed from anywhere

• https://ucl-collab-xnat.cs.ucl.ac.uk hosts projects that can be accessed from UCL and certain collaborating institutions such as UCLH
• https://ucl-internal-xnat.cs.ucl.ac.uk hosts projects that can be accessed from UCL only

---

4. Sign in

If you are responding to an email invitation

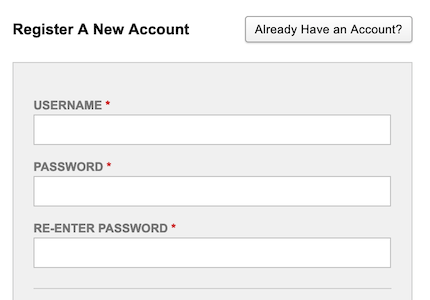

• Do not fill in the Register for a New Account form here.
• Instead click Already Have an Account? and follow the rest of the instructions below

UCL users

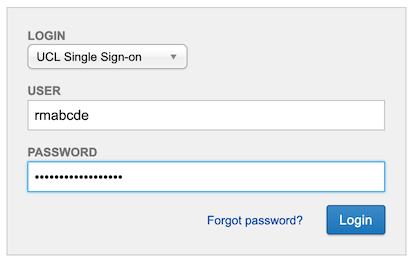

• Sign in using your UCL Single Sign-on credentials. Do not include @ucl.ac.uk in your username.
• If you have any issues, see Log in troubleshooting

Non UCL users

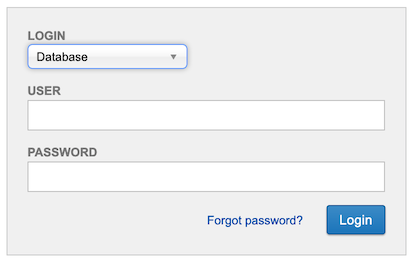

• Change the Login drop-down to Database
• Sign in using the account name provided by the MIRSG team.
• If you do not yet have a password

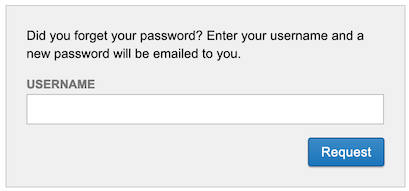

• click Forgot password?
• enter your username in the right-hand panel
• click Request
• A temporary password will be emailed to you, which you can change when you log in.
• If you have any issues, see Log in troubleshooting

---

5. First time UCL users: Register a new account

After you sign in to the server for the first time, UCL users will need to complete the Register a New Account form. Please note also that MIRSG will need to approve your account before you can access your projects

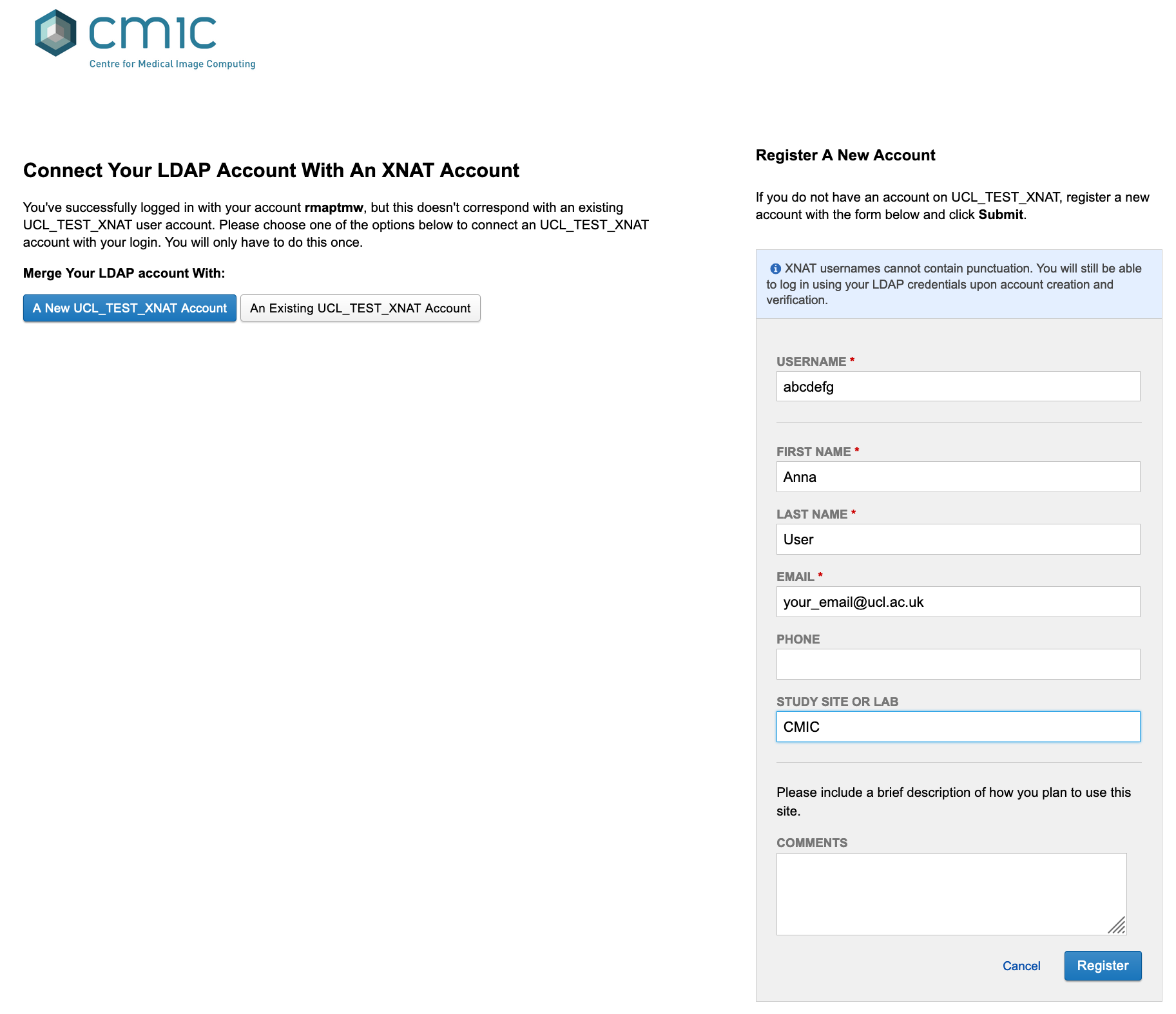

• You will see the Connect Your LDAP Account With An LDAP Account page
• At the bottom-left, under Merge Your LDAP account With, make sure the A New <SERVER NAME> Account button is selected
• Enter your details
• Click Register

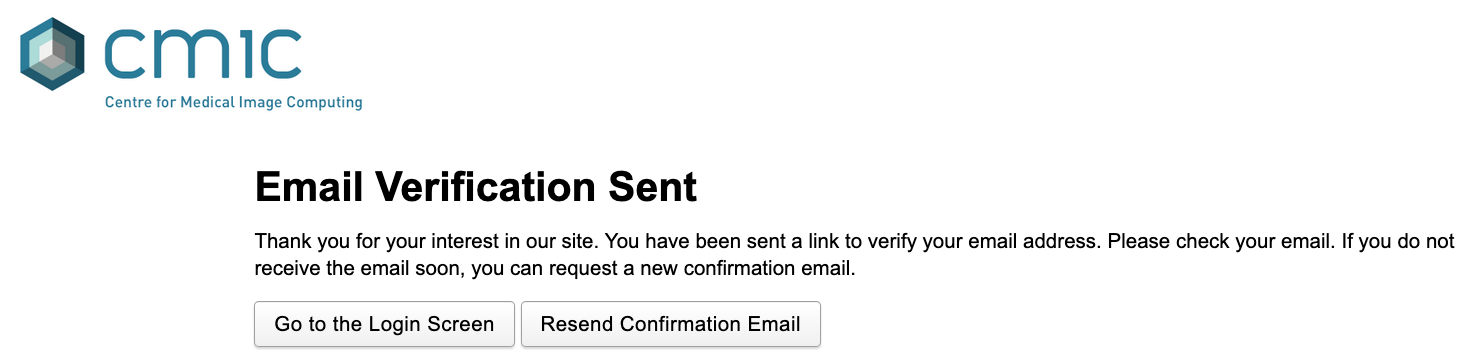

• You will see the Email Verification Sent page

• Wait for an email to be sent to your UCL email address. Click on the link to verify your email. Note if you need to use a VPN to connect to the server, you still need to be connected to the VPN when you click the verification link
• Wait for MIRSG to enable your account. You cannot log in and access projects until your account is enabled. If you need urgent access, contact MIRSG.
